ATEX Certificated R32 ISO TANK  Explosion Proof Refrigerant Gas Recovery Unit

ATEX Certificated R32 ISO TANK Explosion Proof Refrigerant Gas Recovery Unit

  • Condition
    New
  • Applicable Industries
    Machinery Repair Shops, Manufacturing Plant, Construction Works
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Warranty Of Core Components
    1 Year
  • Core Components
    Pump
  • Type
    COMPRESSOR
  • Warranty
    1 Year
  • Compressor
    25HP
  • Vapor Recovery Rate
    Less Than 500kg/h
  • Refrigerants
    R1234ZE, R43, R1234YF Etc
  • Push/Pull Recovery Rate
    Less Than 14000kg/h
  • Standards
    ATEX
  • Recovery Mode
    Vapor & Liquid Recovery
  • Colour
    Green
  • After Warranty Service
    Spare Parts
  • Local Service Location
    United States, None
  • Marketing Type
    New Product 2020
  • After-sales Service Provided
    Free Spare Parts
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    CM
  • Certification
    CE
  • Model Number
    CM580
  • Price
    $19,000.00 - $28,000.00/units
  • Packaging Details
    In wood case Packing Size (LxWxH) cm: 78x70x130 Weight: 140KG
  • Supply Ability
    15 Set/Sets per Week

ATEX Certificated R32 ISO TANK Explosion Proof Refrigerant Gas Recovery Unit

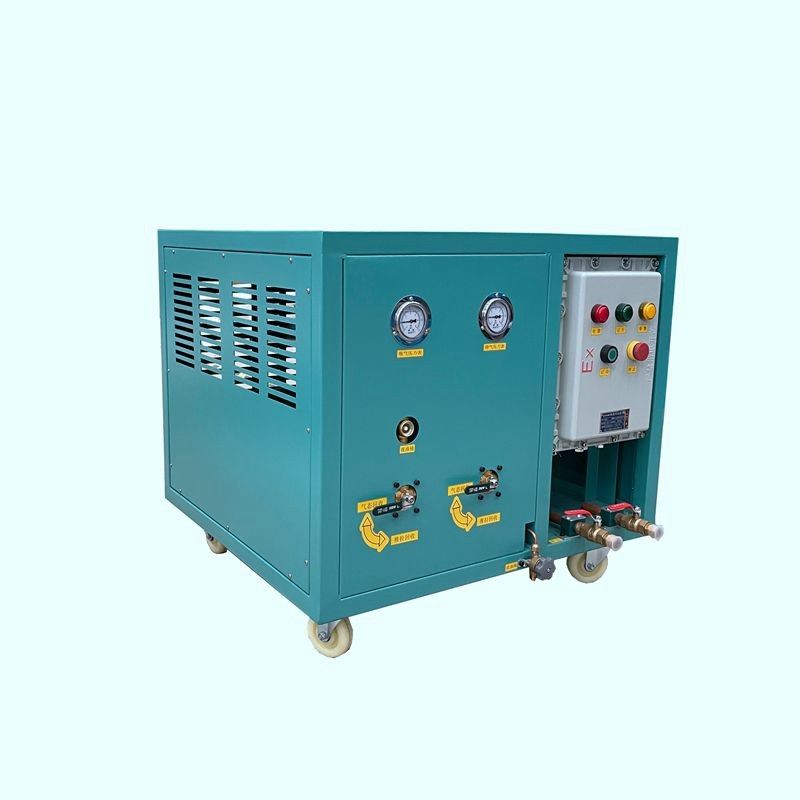

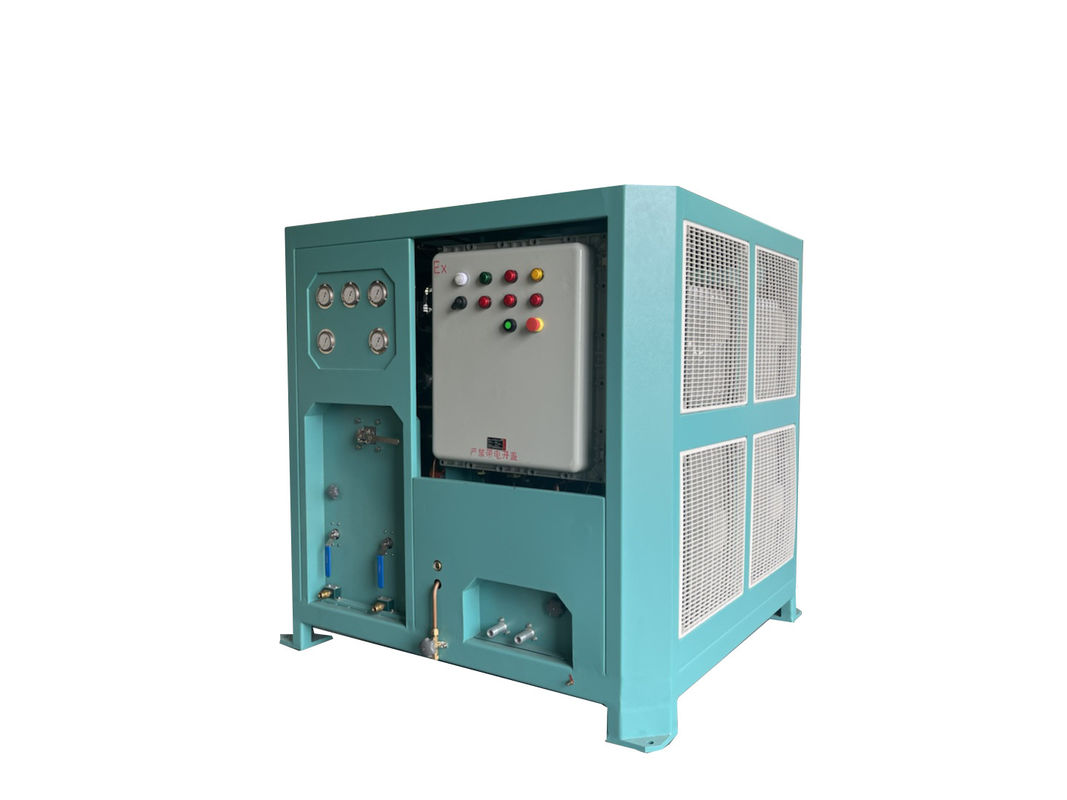

CM580 ISO Tank Refrigerant Recovery Machine











Product Description





Products in CM580  Industrial refrigerant recovery series which ATEX certificated are universal for unload refrigrant from ISO tank or ton tank. It equipped with powerful stainless steel two stage oil less compressor which allow machine recovery refrigerant fast flow rate and long working life

Features:
1.Four cylinder compressor for avoid refrigerant cross contamination
2.Ultra fast recovery rate for both liquid and vapor refrigerants
3.One valve to exchange vapor recovery and liquid push&pull recovery
4.HP and LP shut-off function
5.Standard air cooled and compressor individual cooling system for high efficiency heat exchange rate
6.Deep vacuum degree allow recovery more refrigerant for avoid refrigerant loss
7.Equipped with explosion proof motor and control box for flammable refrigerant
8.Continuously running for 24 hours duty cycle
9.Low RPM with large compressor flow rate make it durable with long working life
10.ATEX Certificated

Data Sheet



Model  Horsepower Compressor Vapor Recovery Rate Liquid   Recovery Rate Certification Power Source
CM-5800 25HP Four-Cylinder 500Kg/H 12000Kg/H ATEX  380V 50Hz

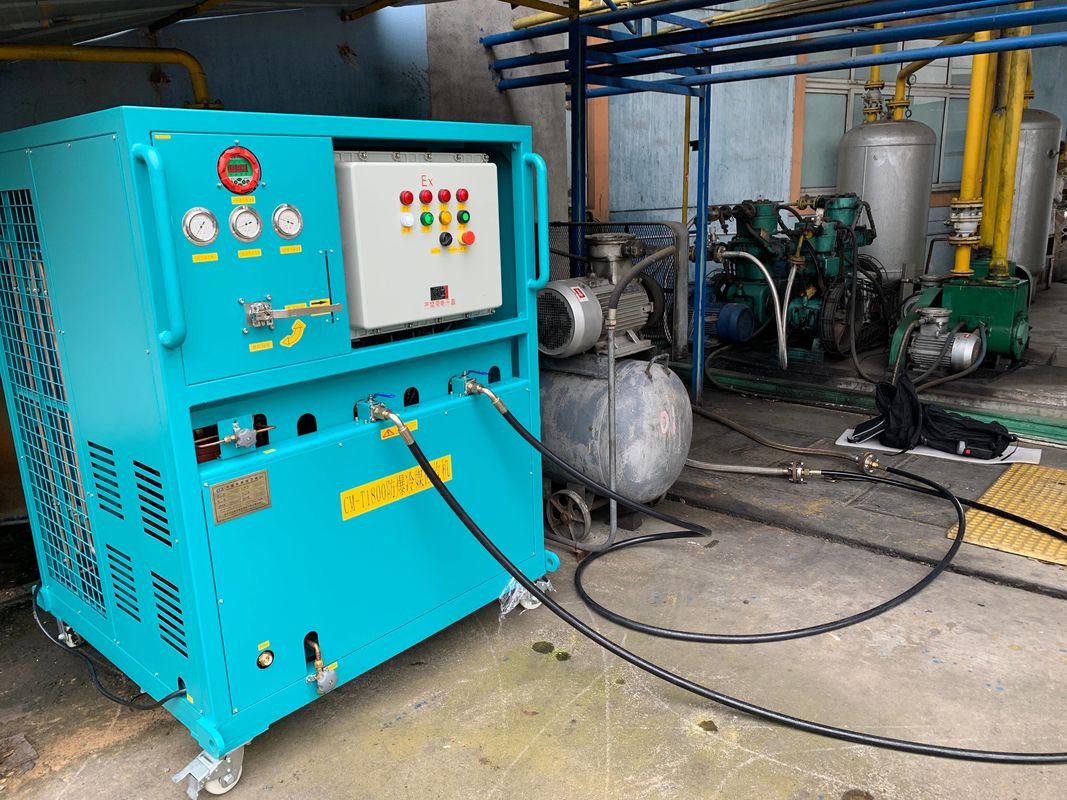

Customer Project

ATEX Certificated R32 ISO TANK  Explosion Proof Refrigerant Gas Recovery Unit 0





ATEX Certificated R32 ISO TANK  Explosion Proof Refrigerant Gas Recovery Unit 1

ATEX Certificated R32 ISO TANK  Explosion Proof Refrigerant Gas Recovery Unit 2







Exhibition



ATEX Certificated R32 ISO TANK  Explosion Proof Refrigerant Gas Recovery Unit 3



Company Information

ATEX Certificated R32 ISO TANK  Explosion Proof Refrigerant Gas Recovery Unit 4





CM is a comprehensive hi-tech enterprise specialized in R&D, manufacture, sales of refrigerant recovery equipment in HVAC/R industry. we owns leading core technology and products for refrigerant recycling equipment. After years of unremitting efforts, our company's core technologies for refrigerant recovery equipment, refrigerant recovery and recycling equipment, refrigerant recovery and filling equipment have reached world-class quality and owns many international patent. It has been supplied the products of many Fortune 500 companies. The company brand“CM”and“Wonfuay”have registered trademarks in China and the United States. With the environmental pollution of traditional refrigerants (destruction of the ozone layer), a large number of traditional refrigerants need to be recycled and reused, and new environmentally friendly refrigerants have been invented in recent years, giving the company a development belt. With new opportunities, CM has continuously increased its R&D investment in recent years. It has developed many new products such as R32/R290/R1234yf to meet the individual needs of different customers and helped many companies reduced refrigerant waste in production and after-sales maintenance process and save large amount funds for, protecting the environment (indirectly reducing carbon emissions by 2 million tons / year)
Due to CM's outstanding contribution in the field of refrigerant emission reduction, during the G20 summit in 2016,the Ministry of Environmental Protection invited the Mr Erik Solheim,UN Enviroment Executive Director to
demonstrate and explain the situation of Chinese refrigeration maintenance industry and the application of
refrigerant emissions and recycling.Mr.Erik Solheim, spoke highly of it.

ATEX Certificated R32 ISO TANK  Explosion Proof Refrigerant Gas Recovery Unit 5
