HVAC Refrigerant Vapor Recovery Machine R410A R134A 2HP Recycling AC Gas Charging Machine
-
ConditionNew
-
Applicable IndustriesMachinery Repair Shops, Manufacturing Plant
-
Weight (KG)80
-
Showroom LocationNone
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportNot Available
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor
-
TypeRefrigerant Recovery Machine
-
Warranty1 Year
-
ApplicationScrew Units, A/C Factory, Hvac/r Maintenance,etc
-
Compressor2HP Oil-less Compressor
-
RefrigerantR22/R410A/R134A
-
Voltage380V/50Hz Or Customized
-
Product NameCM5000 Oil Less Refrigerant Gas Recovery Unit For Chiller Service
-
Pull/push Recovery Rate1300kg/h
-
Vapor Recovery Rate60kg/h
-
Liquid Recovery Rate240kg/h
-
Cooling ModeWater-cooled Or Air-cooled
-
PortShanghai
-
Place of OriginJiangsu, China
-
Brand NameCM
-
CertificationCE
-
Price$3,450.00/units 1-1 units
-
Packaging DetailsPlywood case on pallet CM5000 Oil Less Refrigerant Vapor Recovery Unit
-
Supply Ability50 Unit/Units per Month
HVAC Refrigerant Vapor Recovery Machine R410A R134A 2HP Recycling AC Gas Charging Machine
|
Model
|
Oil-free Compressor
|
Refrigerant
|
Vapor Recovery Rate
|
Liquid Recovery Rate
|
Pull/Push Recovery Rate
|
Power
|
Weight
|
|
CM5000
|
2HP
|
R410a, R22, R134a......
|
≤60kg/h
|
≤240kg/h
|
≤1300kg/h
|
380V/50Hz
|
80kg
|
|
CM6000
|
3HP
|
|
≤80kg/h
|
≤320kg/h
|
≤1900kg/h
|
380V/50Hz
|
80kg
|
Features
CM5000/6000 Refrigerant Rcovery Unit

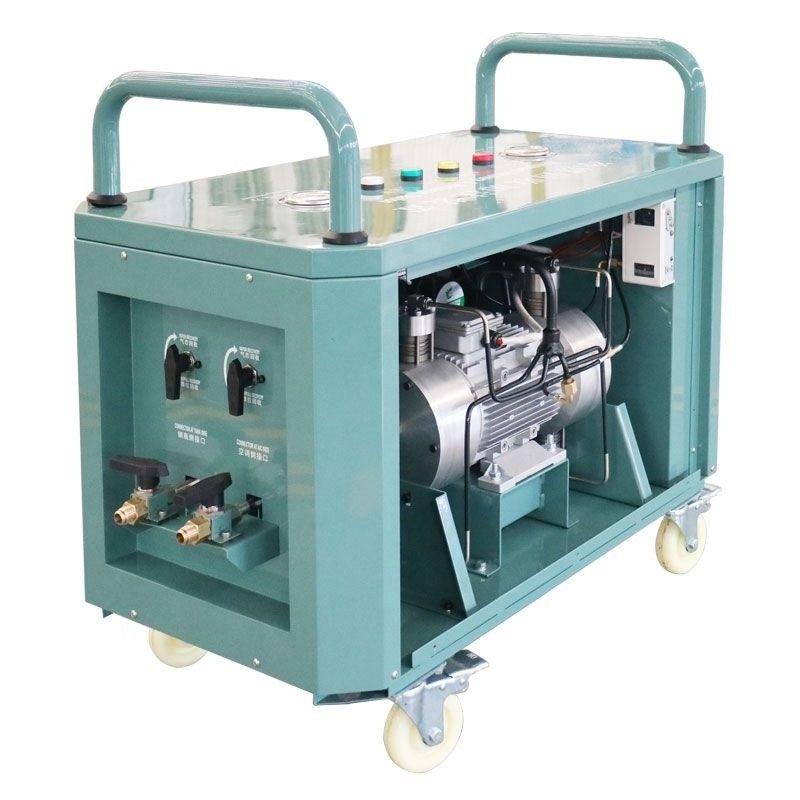

Oil-free lubricating compressor - compatible with CFC/HCFC/HFC refrigerants;
Self-purging design - prevent cross contamination;
Multi-function valve design- simple operation;
Perfect protection system - safe credibility;
Thorough recovery refrigerant and automatic stop when the suction pressure is up to -0.04Mpa
Light weight - air cooled type only 160lbs, water cooled is much lighter
Included with Purchase(standard)
CM5000/6000 Refrigerant Rcovery Unit
Recovery system 1set;
Operating manual 1pc;
Certification of quality 1pc;
Optional accessories
CM5000/6000 Refrigerant Rcovery Unit
1/2" connecting hose(length is customizable)
3/8" connecting hose(length is customizable)
5/8" connecting hose(length is customizable)
3/4" connecting hose(length is customizable)
1/2" to 3/8" adapter
1/2" to 1/4" adapter
1/2" to 5/8" adapter
1/2" to 3/4" adapter
1/2" filter
Cylinder (20L-1000L) customizable
Float switch for cylinder
( length of power cord is customizable)
Application
CM5000/6000 Refrigerant Rcovery Unit

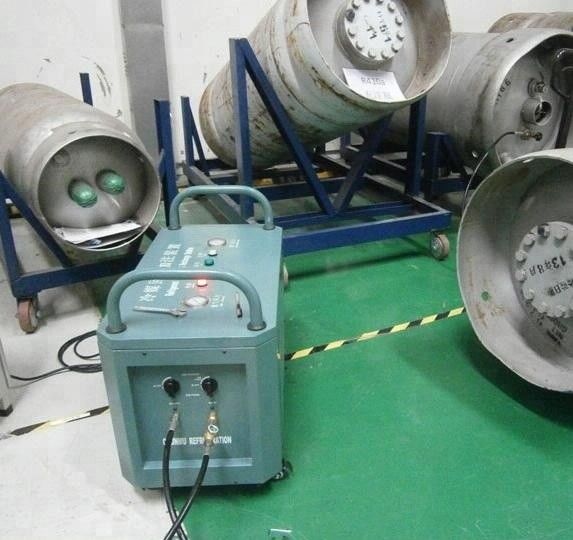

Transfer refrigerants on your job-site;

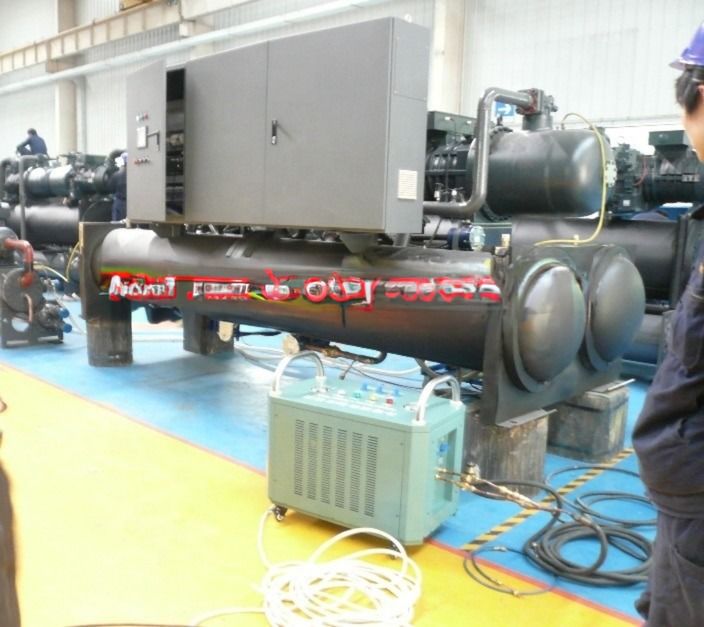

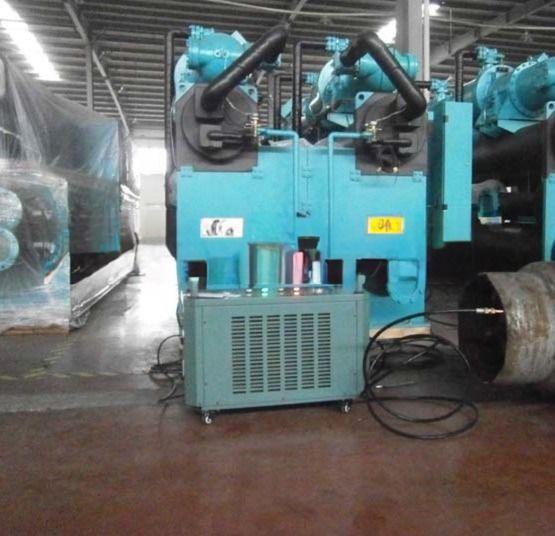

Service chillers & other medium cooling systems;
Small & medium central A/C factories;
On site maintenance of small & medium HVAC/R products;
